SDL » SDL1 » Graphics

SDL graphics can be subdivided in four subchapters: surfaces and bitmap image handling, text rendering, drawing geometric shapes, and image transformation.

Surfaces

SDL introduces a concept of surface, which is like a page, or a part of a page, which may or may not have anything on it. Doing SDL animations from surfaces works almost like doing a collage^[1]:

There is one main surface (the window or the screen) onto which other surfaces can be pasted at different positions and with different orientations. In the end, the main surface will contain the combined image to be presented to users.

There are three kinds of surfaces in SDL: the screen surface (that is, a surface that will be used by the video driver to show whatever needs to be shown), file surfaces (in-memory surfaces created by loading images from PNG, JPG, etc. files), and virtual surfaces (in-memory surfaces created from other surfaces, by cropping or copying them)¹.

The video surface

In the first chapter we saw that the video surface needs to be initialized, and that we can then start drawing or pasting other surfaces on it. The following program creates a window, obtains its surface, and repeatedly paints it green.

import Control.Monad   (forever)
import Graphics.UI.SDL as SDL

main :: IO ()
main = do
  -- Initialization
  SDL.init [InitVideo]

  -- Configuration
  screen <- SDL.setVideoMode 480 320 32 [SWSurface]
  SDL.setCaption "Test" ""

  forever $ do
    -- You can also do this here to get the main video surface
    -- screen <- SDL.getVideoSurface

    let format = SDL.surfaceGetPixelFormat screen
    green <- SDL.mapRGB format 0 0xFF 0
    SDL.fillRect screen Nothing green

    -- Double buffering
    SDL.flip screen

There is a few noticeable aspects:

• As stated before, to work with surfaces we needed to initialize the video subsystem (SDL.init).

• We create the window by setting the video mode (size, bits per pixel, rendering options). We were also able to change the window's title (caption).

• We needed a handle on the screen surface to paint it. We obtained it directly from SDL.setVideoMode, but we could have obtained the same one later from SDL.getVideoSurface.

• We painted the screen green using a drawing primitive. Drawing primitives will be explained later on.

• To actually render the surface on the screen, we need to flip it, that is, to tell SDL that it's ready to be used. That is because SDL implements something called double buffering, in which a surface is drawn offline and presented all at once to avoid flickering.

---

NOTE: In the old days, programmers would directly modify the area of the video memory that the graphics card was reading from. As drawing operations took some time to complete, the screen would show them as they took place, pixel by pixel, which were inconsistent and visually unpleasant.

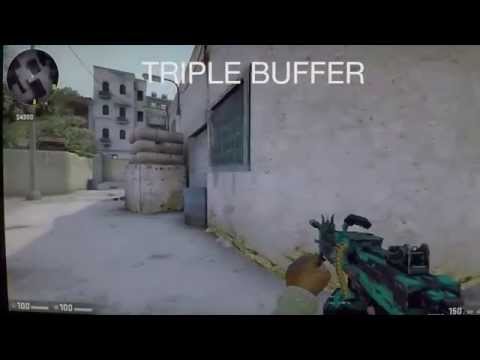

Newer computers included more video memory than necessary to store one full-screen video image. Programmers could then draw a new image in a part of the video memory that was not being presented, and later tell the video output to start showing a different part of the memory instead. This is called double buffering (one buffer for rendering, another for drawing). Newer games feature triple buffering, and also allow us to synchronize buffer switching with the monitor refresh rate (VSync). To appreciate the difference between all of these, see the following video:

---

Exercises

• Change the program so that the screen is drawn red.

• Change the program so that the screen is drawn only the first time, then loop forever doing nothing (return ()). What happens then?

• Change the program so that the screen is drawn once, but do not flip the video surface (double buffering) and then loop forever doing nothing. What happens then?

• The second parameter to SDL.fillRect is a Maybe SDL.Rect. If it is Nothing, the whole surface is filled with the given color. If it is Just a Rect, then only the area specified by the rectangle is filled. Rect has four arguments: the first two are the coordinates of the rectangle's corner, and the other two are its size. Change the program to draw a red rectangle in the middle of a completely green surface.

  • Are the coordinates of the rectangle specified from the center of the video surface, from the top-left corner, from the bottom-left corner, or from some other position?

  • What happens if you paint an area that is bigger than the surface, or partially out of it?

Loading and pasting files

Loading image files could not be easier in SDL. The function SDL.Image.load from the package SDL-image does all the work for us. It guesses the format based on the extension, and gives us a surface that contains the image already. We can use that handle to paste the image onto the video surface. Note that we need to obtain the surface size and specify the position on which we want to paste the image.

import Control.Monad         (forever)
import Graphics.UI.SDL       as SDL
import Graphics.UI.SDL.Image as SDL

main :: IO ()
main = do
  -- Initialization
  SDL.init [InitVideo]

  -- NEW: load image
  image <- SDL.load "bunny1_jump.png"
  let imgWidth  = surfaceGetWidth  image
      imgHeight = surfaceGetHeight image

  -- Configuration
  screen <- SDL.setVideoMode 480 320 32 [SWSurface]
  SDL.setCaption "Test" ""

  forever $ do
    -- You can also do this here to get the main video surface
    -- screen <- SDL.getVideoSurface

    let format = SDL.surfaceGetPixelFormat screen
    green <- SDL.mapRGB format 0 0xFF 0
    SDL.fillRect screen Nothing green

    -- NEW: Paste the image surface onto the gree background
    SDL.blitSurface image Nothing screen (Just (Rect 30 30 imgWidth imgHeight))

    -- Double buffering
    SDL.flip screen

Homework

• Copy a bunny onto each corner of the video surface. Change the default size of 480x320 pixels and check that the bunnies are still being shown in the corners of the screen.

• What happens if you resize the window?

• Load two images instead of one. Move the rendering code in the do block to a separate function that receives both images as a parameter, and has a third Int parameter. Make that function call itself after rendering each frame, increasing the value in one unit every time, up to 512 and then going back to 0. Make the function blit the first image if the argument is lower than 256, and the second if the argument is between 256 and 512.

Notes

• We have not seen how to handle time yet. This way of producing animations is suboptimal because the speed of the animation depends on CPU speed and load. The animation might speed up or slow down during gameplay, and it might run too fast in next-generation computers (something that happened to most 80386 games when Pentiums came around).

Software surfaces

Finally, we are going to see how to create a completely in-memory surface. These are useful when we need to pass a surface to an operation (for instance, as a white canvas to draw onto), and then blit that surface onto a larger surface at a given position.

For instance, in a game, you might want to draw the game scene on a virtual surface, the game menu on another surface, and then blit them both in specific coordinates of the main video surface. This way, none of the sub-rendering functions needs to know about its position with respect to the parent surface.

The following code creates two surfaces, draws two subparts of the UI in them, pastes them both in the main video surface, and then presents the main surface.

Homework

• Create the following UI using the assets from TOBECOMPLETED and the code template from TOBECOMPLETED.

Notes

• While it makes your code clearer, using software surfaces may be expensive. If you abuse them, your code will run subtantially slower.

Rendering text

Loading fonts

Rendering text

Font effects

Notes

• Text rendering is expensive. In your games, if the same text is being rendered often, consider caching the surface and just blitting it.

Drawing arbitrary shapes

SDL allows you to draw primitive shapes onto the screen. Unlike surfaces, shapes are drawn directly without blitting them. The current Haskell bindings for SDL-gfx are less developed than the main project's bindings and use Word-based types. Nevertheless, they achieve their purpose. Let's draw a few figures on the screen.

PLACE FOR A CODE EXAMPLE

Drawing these shapes may be more tedious than using PNG files. While you can achieve aesthetically-pleasant effects and your UIs will be easily scalable if you draw shapes by hand using SDL-gfx, your game make take longer to develop. If you are not an experienced graphics programmer and designer, programming quality graphics may proof too difficult in the end. That is why most programmers use assets created by graphics designers in some graphic format.

Always keep in mind that the end goal is to complete a fun game, and that nobody will care if your game was prefectly scalable if you never released it.

Homework

To be completed

Transforming images

To complete this chapter on SDL graphics, we are going to see how to manipulate images. You can perform a few transformations, namely rotations, flipping, etc.

The following code example should make it clear how these transformations work.

TO BE COMPLETED

Footnotes

1. The difference between a file surface and a software surface is quite arbitrary: it is just an area in memory that holds bytes. The difference only lies in how those two areas are created.

References

• [1] Image created by lizlovespink.
