SPI chip connection

NANDO supports 3.3V SPI chip programming. The chip can be connected by wires or using adapter according to following schema:


Make sure RESET and WP are connected to VCC.

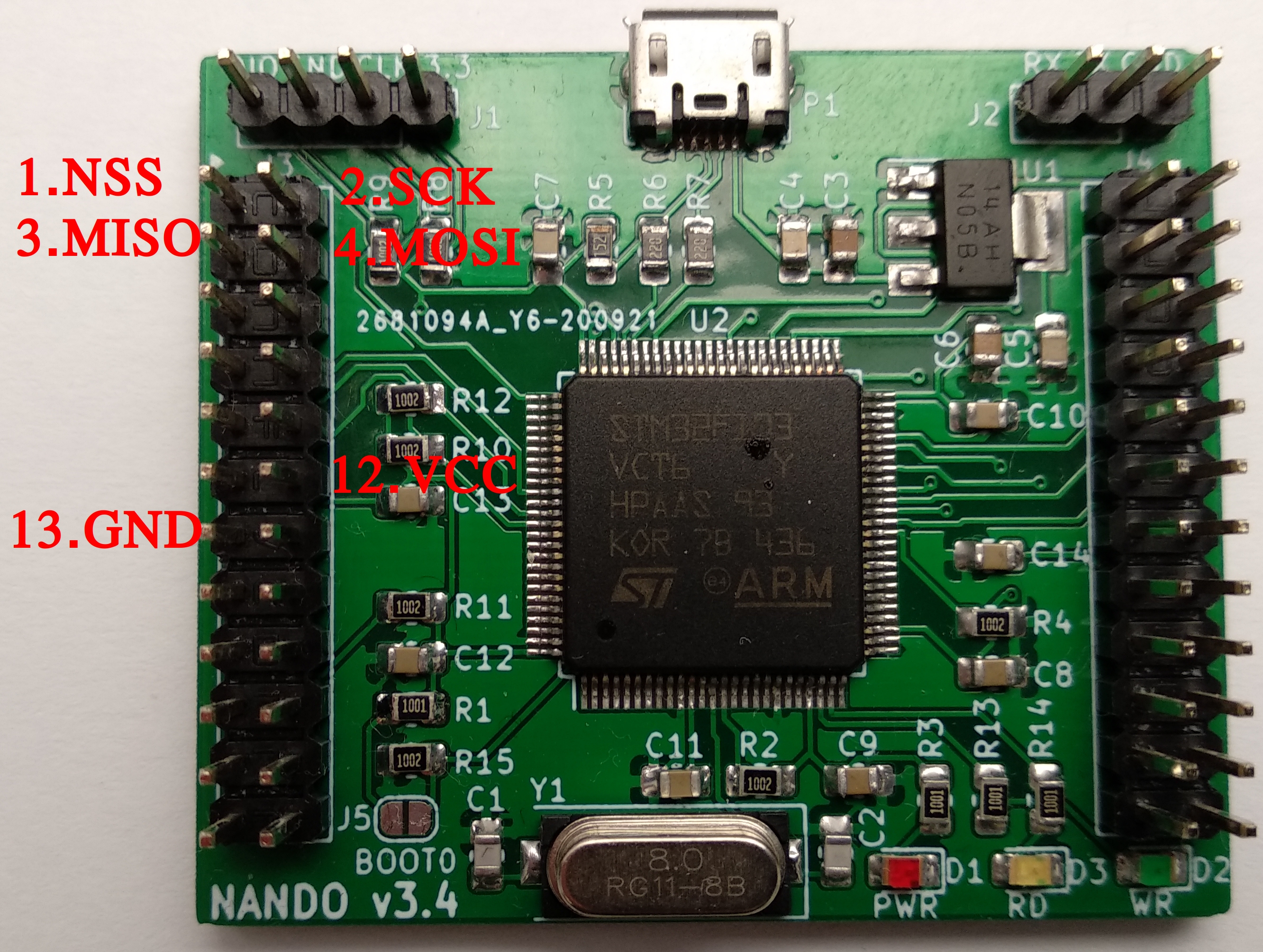

Currently one soldering adapter is available for following pinout:
