Troubleshooting Slow Compilation in Arduino IDE (v1.8.x and 2.x)

If It takes too long to compile a small program using Arduino IDE version 1.8.x or 2.x

you must read this repo!

If you don't have time to read it all, here is a TL;DR

Recently, I have encountered a disturbing issue where the compilation process can take an unreasonably long time while running the Arduino IDE on a strong i7 computer with 16GB of RAM and a fast SSD drive. This situation is frustrating and does not make any sense!

At first, I thought that the compiling process required a long time due to the complexity of my project, and thus the complexity/length of the code, which demands a long processing time. However, it turned out that even for short or simple code, the compilation process takes a long time.

It seems that the phenomenon depends on the board model/libraries installed, which extend the compilation time. Thus, choosing a board with other libraries can help shorten the compilation process, but the whole idea of using Arduino is to choose the appropriate board according to the project needs and not according to the time required for compilation.

Therefore, replacing the selected board type because the Arduino IDE is slow is not the desired solution.

To solve the problem of long compilation time, I have made a number of attempts to first understand the cause.

1st test:

Halting the antivirus was my first move, suspecting it might be the cause of the slow compilation time. However, this did not resolve the issue.

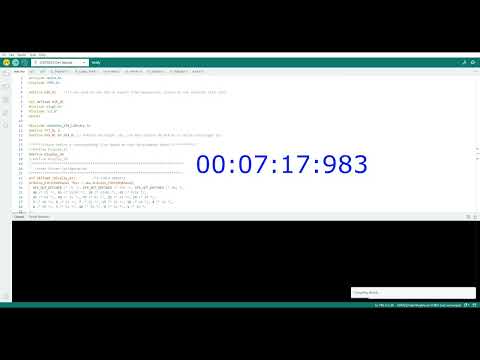

Next, since I was uncertain whether stopping the antivirus was effective, I completely uninstalled it. This did lead to some improvement, but compilation still took over eight minutes.

2nd test:

I attempted to completely uninstall Arduino IDE version 2.2.1 and reinstall the previous version 1.8.19. However, it turned out that the prolonged compilation process phenomenon persists in both versions of the Arduino IDE.

3rd test:

Would a powerful and fast computer solve the problem? I tried to assess how much computer hardware affects compilation speed. Since I didn't have a powerful computer available, I set up a dedicated cloud computer with 8 cores and 32GB of memory. This virtual computer successfully passed a few benchmark tests and turned out to be much faster than my personal i7 computer.

I have installed the Arduino IDE on it with the same settings and libraries. However, the compilation speed has improved to four minutes. Since the code has not been changed, and I am using a faster computer, the compilation speed is still not reasonable.

To try to understand where the problem lies, I selected the "Show verbose output during compilation" option in the Arduino IDE Preferences. This option displays detailed comments while the compilation progress is running.

Setting the compilation Preferences in the Arduino IDE:

File>Settings>Preferences>Show verbose output during compilation

It's pretty clear now that it hasn't stopped working. The Arduino IDE is just processing too many files in the libraries folder.

Here is a short example from the huge log file:

"C:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\tools\\xtensa-esp32s3-elf-gcc\\gcc8_4_0-esp-2021r2-patch3/bin/xtensa-esp32s3-elf-g++" -DHAVE_CONFIG_H "-DMBEDTLS_CONFIG_FILE=\"mbedtls/esp_config.h\"" -DUNITY_INCLUDE_CONFIG_H -DWITH_POSIX -D_GNU_SOURCE "-DIDF_VER=\"v4.4.1-1-gb8050b365e\"" -DESP_PLATFORM -D_POSIX_READER_WRITER_LOCKS "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/config" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/esp_hw_support/include/soc/esp32s3" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/spi_flash/include" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/bootloader_support/include" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/nvs_flash/include" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/pthread/include" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/esp-dsp/modules/windows/blackman_nuttall/include" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/esp-sr/esp-tts/esp_tts_chinese/include" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/esp-sr/include/esp32s3" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/esp32-camera/driver/include" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/esp32-camera/conversions/include" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/include/fb_gfx/include" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3/tools/sdk/esp32s3/qspi_opi/include" -mlongcalls -ffunction-sections -fdata-sections -Wno-error=unused-function -Wno-error=unused-variable -Wno-error=deprecated-declarations -Wno-unused-parameter -Wno-sign-compare -ggdb -Os -freorder-blocks -Wwrite-strings -fstack-protector -fstrict-volatile-bitfields -Wno-error=unused-but-set-variable -fno-jump-tables -fno-tree-switch-conversion -std=gnu++11 -fexceptions -fno-rtti -c -w -x c++ -E -CC -DF_CPU=240000000L -DARDUINO=10819 -DARDUINO_ESP32S3_DEV -DARDUINO_ARCH_ESP32 "-DARDUINO_BOARD=\"ESP32S3_DEV\"" "-DARDUINO_VARIANT=\"esp32s3\"" -DARDUINO_PARTITION_default -DESP32 -DCORE_DEBUG_LEVEL=0 -DARDUINO_RUNNING_CORE=1 -DARDUINO_EVENT_RUNNING_CORE=1 -DBOARD_HAS_PSRAM -DARDUINO_USB_MODE=1 -DARDUINO_USB_CDC_ON_BOOT=0 -DARDUINO_USB_MSC_ON_BOOT=0 -DARDUINO_USB_DFU_ON_BOOT=0 "@C:\\Users\\RAM\\AppData\\Local\\Temp\\arduino_build_113463/build_opt.h" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3\\cores\\esp32" "-IC:\\Users\\RAM\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.3\\variants\\esp32s3" "-IC:\\Users\\RAM\\Documents\\Arduino\\libraries\\Wire\\src" "-IC:\\Users\\RAM\\Documents\\Arduino\\libraries\\SPI\\src" "-IC:\\Users\\RAM\\Documents\\Arduino\\libraries\\lvgl\\src" "-IC:\\Users\\RAM\\Documents\\Arduino\\libraries\\GFX_Library_for_Arduino\\src" "-IC:\\Users\\RAM\\Documents\\Arduino\\libraries\\gt911-arduino-main" "C:\\Users\\RAM\\Documents\\Arduino\\libraries\\lvgl\\src\\draw\\stm32_dma2d\\lv_gpu_stm32_dma2d.c" -o nul

This is very strange. The compiler is not supposed to verify hundreds of library files each time a compilation process is performed. Even so, it might do so during the first compilation process of the project, and after that, it should only go over files that have been modified.

In other words, even if the first compilation process might take ~8 minutes, the second should be much shorter.

At this point, and after all the tests I conducted, there wasn't much left to test. Therefore, I thought that there might be a problem with the Arduino IDE software.

The fourth and the last test:

My last test was very short. I have added the Visual Micro Arduino plugin to the Visual Studio development environment.

So far, I haven't used Visual Studio for the development of my Arduino projects.

Performing the first compilation process for the same code ended very fast! It took less than 30 seconds using my local computer, and not on the fast virtual machine.

I have no doubt that it would have been much faster if I had tested it on the virtual computer I set up.

The paradox here is that the installation of the Visual Micro plugin relies on the installation of Arduino IDE and its libraries.

Conclusion

Most likely, the problem lies in the Arduino IDE settings, or there is a bug in the two versions I have checked.

The compilation process using the Arduino IDE is not performed optimally for certain Arduino boards/libraries.

Perhaps there are some configuration files that I have overlooked in the Arduino IDE settings, which can be configured to make the compilation process much more efficient?

Therefore, I present my solution for individuals facing the challenge of

excessively long compilation times while using the Arduino IDE:

Install Visual Studio microsoft.com and then add the Arduino plugin Visual Micro https://www.visualmicro.com and Visual Studio

NOTE:

The first compilation process can still take longer, but all the others shall take the minimum time needed.
