🗺️ { React HERE Map } 🗺️

npm npm
contributions welcome Maintenance GitHub license

React library for rendering and working with HERE Maps.

It simplifies the use of the HERE Map JavaScript API with the help of React components.

The components can be imported and easily rendered. It also comes with seamless configuration and modifications.

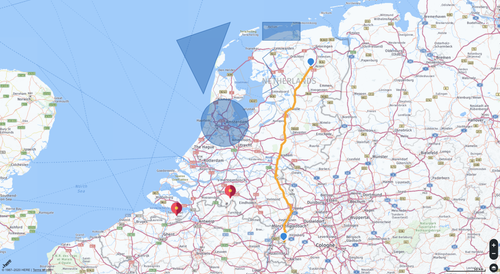

Demo image



Feel like giving some support?

🚨 Report issues 🚨
⬅️ Make pull requests ➡️
⭐ Star this project ⭐

👀 / Overview

Since the creation of this library, many features have been added. At this point in time the following features are present and usable:

1. Display a (interactive) map in your webapp
2. Add (custom styled) markers, lines, circles, etc. to the map
3. Calculate and show routes between different coordinates
4. Calculate and show isochrone views by duration, distance or fuel consumption
5. Use GeoCoding to find locations or reverse search coordinates

🎹 / Demo

Demo
🚧 Work in Progress 🚧

🦺 / Requirements

Before you continue, ensure you meet the following requirements:

✅ You have a basic understanding of React
✅ You are using React 16.8 or above (hooks)
✅ You created an HERE developer account
✅ You located your HERE "app_id" and "app_code" or your "apiKey"

Can't check all boxes?

Learn React

Update your project

Create an HERE Developer account


📌 / Installation

Using NPM:

npm install react-here-map

Using Yarn:

yarn add react-here-map

🕹️ / General Usage

// Interactive map with UI, centered and zoomed on a defined location

import React from 'react';
import { HPlatform, HMap } from 'react-here-map';

function Map() {
  const mapOptions = { center: { lat: 52.092876, lng: 5.10448 }, zoom: 7 };

  return (
    <HPlatform
      app_id='YOUR_APP_ID'
      app_code='YOUR_APP_CODE'
      interactive
      includeUI
    >
      <HMap mapOptions={mapOptions} />
    </HPlatform>
  );
}

export default Map;

🗄️ / Folder structure

  .
  ├── 📁 example          // Example code (demo)
  ├── 📁 src
  │   ├── 📁 components
  │   ├── 📁 libs         // Helpers (setup)
  │   └── 📄 index.js     // App entrypoint (defines all components)
  ├── 👗 .editorconfig
  ├── 👗 .eslintignore
  ├── 👗 .eslintrc
  ├── 🤷 .gitignore
  ├── 👗 .prettierrc
  ├── 👗 .travis.yml
  ├── 📄 .index.d.ts
  ├── 🔑 LICENSE
  ├── 📚 README.md
  ├── ✔️ TODO.md
  ├── 📦 package.json
  └── 📦 🔑 package-lock.json

📝 / Docs

Usage of the map requires atleast the HPlatform and HMap components. All other components are optional.

  • The HPlatform has to be the parent of the HMap.
  • The HMap has to be the parent of all other components.
  • All other components have to be a direct child of the HMap
// Simplified representation

import React from 'react';
import { HPlatform, HMap, ...} from 'react-here-map';

function Map() {
  return (
    <HPlatform>
      <HMap>
        <HMapMarker />
        <HMapMarkers />
        <HMapPolyline />
        <HMapCircle />
        <HMapRectangle />
        <HMapPolygon />
        <HMapRoute />
        <HMapPlaces />
        <HMapGeoCode />
        <HMapLayer />
      </HMap>
    </HPlatform>
  );
}

export default Map;

Components

  1. HPlatform - Platform initializer
  2. HMap - Draws the map
  3. HMapMarker - Draws a marker on the map.
  4. HMapMarkers - Draws a list of markers on the map.
  5. HMapPolyline - Draws a polyline on the map.
  6. HMapCircle - Draws a circle on the map.
  7. HMapRectangle - Draws a rectangle on the map.
  8. HMapPolygon - Draws a polygon on the map.
  9. HMapRoute - Calculate and draw a route between two or more coordinates.
  10. HMapPlaces - Use places.
  11. HMapGeoCode - Turns a physical address to a point on the map
  12. HMapLayer - Add additional layers to the map.

Event Handling - Handling of user events with HMap and its objects.map.

Usage in details

HPlatform

A container for all of the components in this library. Generates a platform that gets injected into all of its direct children.

// HPlatform with all possible props

import React from 'react';
import { HPlatform } from 'react-here-map';

function Map() {
  return (
    <HPlatform
      app_id='YOUR_APP_ID'
      app_code='YOUR_APP_CODE'
      apikey='YOUR_API_KEY'
      version='v3/3.0'
      language='EN'
      mapType='normal.map'
      interactive
      includeUI
      useLocation
      includePlaces
      useHTTPS
    >
      // All children go in here 🧒
    </HPlatform>
  );
}

export default Map;
Prop name Description Type Default value
app_id HERE Application ID String Required
app_code HERE Application Code String Required
apikey HERE API key for usage with version 3.1 String -
version HERE map API version String 'v3/3.0'
language Language of the map and the UI (if included) - Options String 'EN' (English)
mapType Type of the map as a dot prop - Options String 'normal.map'
interactive Makes the map react to events (drag, click, scroll, etc.). Needed for event handling Boolean false
includeUI Add UI controls Boolean false
useLocation Center the map on the current location of the user if permission is granted Boolean false
includePlaces Add the module for working with places Boolean false
useHTTPS Load the library using HTTPS Boolean true
useCIT use the Customer Integration Testing (CIT) instead of the Production environment Boolean false

Language options

'EN' //English
'GER' //German
'SPA' //Spanish
'FIN' //Finish
'ITA' //Italian
'DUT' //Dutch
'POL' //Polish
'POR' //Portugese
'RUS' //Russian
'TUR' //Turkish
'CHI' //Chinese

Map types

// normal.traffic, normal.base, etc.
normal: ["map", "traffic", "base", "xbase", "panorama", "labels", "transit"],

// satellite.xbase, satellite.label, etc.
satellite: ["map", "traffic", "base", "xbase", "panorama", "labels"],

// terrain.map, terrain.panorama, etc.
terrain: ["map", "traffic", "base", "xbase", "panorama", "labels"],

All direct children of the HPlatform component receive:

  • platform A reference to H.service.platform Docs
  • options A reference to the options used to bootstrap the scripts: See here

HMap

Displays the HERE Map

import React from 'react';
import { HPlatform, HMap } from 'react-here-map';

function Map() {
  const style = { width: '800px', height: '500px' };
  const mapOptions = { center: { lat: 52.092876, lng: 5.10448 }, zoom: 7 };

  return (
    <HPlatform
      app_id='YOUR_APP_ID'
      app_code='YOUR_APP_CODE'
      apikey='YOUR_API_KEY'
      interactive
      includeUI
    >
      <HMap style={style} mapOptions={mapOptions}></HMap>
    </HPlatform>
  );
}

export default Map;
Prop name Description Type Default value
style Set style options for the map, like width and height object { width: '100%', height: '100%' }
mapEvents Options (Official Docs) object -
mapOptions Options (Official Docs) object { center: { lat: 0, lng: 0 }, zoom: 2 }

All direct children of the HMap component receive:

  • map A reference to the map object used to create the visual map. Docs
  • platform A reference to H.service.platform Docs
  • ui A reference to the ui object that does inclusion of ui elements. Docs
  • __options A reference to the options merged with writable defaults used in bootstrapping the map and its items

if you wish to render a supported component of this library outside the context of the map, make sure to render it in a place where the above props can be passed explicitly to avoid nasty, unfriendly errors.

In some cases, as we will soon see, there is an option for passing a custom component with more enhancements (defined by the programmer), these props are received as first class directly from the containing parent and not from HMap, but still holds the same object references


HMapMarker

Puts a marker on the map at the provided coordinates. The coordinates must consist of an object with a lat and lng value.

import React from 'react';
import { HPlatform, HMap, HMapMarker } from 'react-here-map';

function Map() {
  const coords = { lat: 52, lng: 5 };

  const icon =
    '<svg width="24" height="24" ' +
    'xmlns="http://www.w3.org/2000/svg">' +
    '<rect stroke="white" fill="#1b468d" x="1" y="1" width="22" ' +
    'height="22" /><text x="12" y="18" font-size="12pt" ' +
    'font-family="Arial" font-weight="bold" text-anchor="middle" ' +
    'fill="white">H</text></svg>';

  return (
    <HPlatform
      app_id='YOUR_APP_ID'
      app_code='YOUR_APP_CODE'
      apikey='YOUR_API_KEY'
      interactive
      includeUI
    >
      <HMap>
        <HMapMarker coords={coords} icon={icon}></HMapMarker>
      </HMap>
    </HPlatform>
  );
}

export default Map;
Prop name Description Type Default value
coords Object containing specified lat (latitude) and lng (longitude) values object Required
icon Icon for the marker bitmap
(An image URL, an SVG (string), an bitmap image or a canvas)		 (default icon)
DOM Display a marker that is capable of receiving DOM events boolean false
setViewBounds Centers the line on the map object true
options Officially documented Options object -

HMapMarkers

Puts markers on the map at the provided coordinates. The coordinates must consist of an array containing object with a lat and lng value.

import React from 'react';
import { HPlatform, HMap, HMapMarkers } from 'react-here-map';

function Map() {
  const points = [
    { lat: 52, lng: 5 },
    { lat: 51, lng: 4 },
    { lat: 50, lng: 3 }
  ];

  const icon =
    '<svg width="24" height="24" ' +
    'xmlns="http://www.w3.org/2000/svg">' +
    '<rect stroke="white" fill="#1b468d" x="1" y="1" width="22" ' +
    'height="22" /><text x="12" y="18" font-size="12pt" ' +
    'font-family="Arial" font-weight="bold" text-anchor="middle" ' +
    'fill="white">H</text></svg>';

  return (
    <HPlatform
      app_id='YOUR_APP_ID'
      app_code='YOUR_APP_CODE'
      apikey='YOUR_API_KEY'
      interactive
      includeUI
    >
      <HMap>
        <HMapMarkers points={points} icon={icon} />
      </HMap>
    </HPlatform>
  );
}

export default Map;
Prop name Description Type Default value
points Array containing objects with specified lat (latitude) and lng (longitude) values array Required
icon Icon for the markers bitmap
(image URL, SVG, bitmap image or canvas)		 (default icon)
DOM Display markers that are capable of receiving DOM events boolean false
setViewBounds Centers the markers on the map object true
options Officially documented Options object -

HMapPolyline

Draws a polyline on the map

import React from 'react';
import { HPlatform, HMap, HMapPolyline } from 'react-here-map';

function Map() {
  const points = [
    { lat: 52, lng: 5 },
    { lat: 52, lng: 6 },
    { lat: 53, lng: 6 }
  ];

  const polyLineOptions = { style: { strokeColor: '#FF4507', lineWidth: 5 } };

  return (
    <HPlatform
      app_id='YOUR_APP_ID'
      app_code='YOUR_APP_CODE'
      apikey='YOUR_API_KEY'
      interactive
      includeUI
    >
      <HMap>
        <HMapPolyline points={points} options={polyLineOptions} setViewBounds />
      </HMap>
    </HPlatform>
  );
}

export default Map;
Prop name Description Type Default value
points Array of (atleast 2) objects containing specified lat (latitude) and lng (longitude) values Array Required
options Options (Official Docs) object -
setViewBounds Centers the Polyline on the map object true

HMapPolygon

Draws a polygon on the map

Props
  • points: PropTypes.array.isRequired - Array of objects containing lat and lng of lat,lng string separated by comma.
  • options: PropTypes.object - options for the polygon.

Usage

import React from 'react';
import { HPlatform, HMap, HMapPolygon } from 'react-here-map';

function Map() {
  const points = [
    { lat: 52, lng: 5 },
    { lat: 52, lng: 6 },
    { lat: 53, lng: 6 }
  ];

  const polygonOptions = {
    style: { strokeColor: '#FF4507', fillColor: 'yellow', lineWidth: 10 }
  };

  return (
    <HPlatform
      app_id='YOUR_APP_ID'
      app_code='YOUR_APP_CODE'
      apikey='YOUR_API_KEY'
      interactive
      useHTTPS
      includeUI
    >
      <HMap>
        <HMapPolygon points={points} options={polygonOptions}></HMapPolygon>
      </HMap>
    </HPlatform>
  );
}

export default Map;
Prop name Description Type Default value
points Array of (atleast 2) objects containing specified lat (latitude) and lng (longitude) values Array Required
options Options (Official Docs) object -
setViewBounds Centers the Polygon on the map object true

HMapCircle

Puts a circle on the map

Props
  • coords: PropTypes.object.isRequired - Object with lat and lng for the circle center point on the map
  • options: PropTypes.object - Options for the circle. Docs
  • radius: PropTypes.number - The radius of the circle in kilometers
  • setViewBounds: PropTypes.bool - Centers circle on the map. Default true
Usage
import React from 'react';
import { HPlatform, HMap, HMapCircle } from 'react-here-map';

function Map() {
  const style = { height: '100%', width: '100%' };
  const mapOptions = { center: { lat: 52.092876, lng: 5.10448 }, zoom: 7 };

  const coords = { lat: 52, lng: 5 };

  return (
    <HPlatform
      app_id='YOUR_APP_ID'
      app_code='YOUR_APP_CODE'
      apikey='YOUR_API_KEY'
      interactive
      useHTTPS
      includeUI
    >
      <HMap style={style} mapOptions={mapOptions}>
        <HMapCircle coords={coords} radius={10}></HMapCircle>
      </HMap>
    </HPlatform>
  );
}

export default Map;

HMapRectangle

Puts a rectangle on the map

Props
  • points: PropTypes.array.isRequired - Two element array with lat and lng specified. the first coord will be the top-left of the rectangle and the second the bottom-right
  • options: PropTypes.object - Options for the rectangle. Docs
  • setViewBounds: PropTypes.bool - Centers the map with the circle. Default true
Usage
import React from 'react';
import { HPlatform, HMap, HMapCircle, HMapRectangle } from 'react-here-map';

function Map() {
  const style = { height: '100%', width: '100%' };
  const mapOptions = { center: { lat: 52.092876, lng: 5.10448 }, zoom: 7 };

  const points = [
    { lat: 52, lng: 5 },
    { lat: 53, lng: 6 }
  ];

  return (
    <HPlatform
      app_id='YOUR_APP_ID'
      app_code='YOUR_APP_CODE'
      apikey='YOUR_API_KEY'
      interactive
      useHTTPS
      includeUI
    >
      <HMap style={style} mapOptions={mapOptions}>
        <HMapRectangle points={points}></HMapRectangle>
      </HMap>
    </HPlatform>
  );
}

export default Map;

Event Handling

This section demonstrates how to use an event with either HMap component or a map object.

HMap Event Handling

No additional prop is required aside from those requiredby HMap. Below is a working code for a pointerup event:

To use an event, you have to pass interactive to the HPlatform and pass in useEvents and mapEvents props to the HMap like this:

import { HPlatform, HMap, HMapPolyline } from 'react-here-map';

<HPlatform
  app_id='YOUR_APP_ID'
  app_code='YOUR_APP_CODE'
  apikey={'YOUR_API_KEY_FOR_V3.1'}
  useCIT
  useHTTPS
  interactive // Required for events
  includeUI
  includePlaces
>
  <HMap
    style={{
      height: '400px',
      width: '800px'
    }}
    mapOptions={{ center: { lat: 52.5321472, lng: 13.3935785 } }}
    useEvents // Required for events
    mapEvents={{ pointerdown: (e) => console.log('Map Pointer Down', e) }} // event handlers
  />
</HPlatform>;

Map Object event handling

All map object handles events the same way. Since all map objects are direct children of HMap and receives HPlatform information, useEvents props in the HMap tells the map objects to initialize events. So, a single useEvents props is sufficient for all the children. In case that only a map object is expected to handle events, useEvents can be passed to the object which will initialize events defined for that object and not on the rest of the other sibling objects of the same HMap parent.

Usage
import HPlatform, {
  HMap,
  HMapCircle,
  HMapMarker,
  HMapPolygon,
  HMapPolyline,
  HMapRectangle
} from 'react-here-map';

const rectanglePoints = [51.5072, 0, 48.8567, 2.3508];
const rectangleOptions = {
  style: {
    fillColor: '#FFFFCC',
    strokeColor: '#E8FA75',
    lineWidth: 8
  }
};
const circleCoords = { lat: 52.3667, lng: 4.9 };
const circleOptions = {
  style: {
    strokeColor: 'rgba(55, 85, 170, 0.6)', // Color of the perimeter
    lineWidth: 2,
    fillColor: 'rgba(0, 128, 0, 0.7)' // Color of the circle
  }
};

const polyLinePoints = [
  { lat: 52.5167, lng: 13.3833 },
  { lat: 50.0833, lng: 14.4167 },
  { lat: 52.2333, lng: 21.0167 }
];

const polygonPoints = [45.4667, 9.1833, 0, 48.1333, 11.566, 0, 50.08, 8.24, 0];
const polygonOptions = {
  style: {
    fillColor: '#FFFFCC',
    strokeColor: '#829',
    lineWidth: 8
  }
};

const markerCoords = { lat: 48.2, lng: 16.3667 };

const markerIcon =
  '<svg width="24" height="24" ' +
  'xmlns="http://www.w3.org/2000/svg">' +
  '<rect stroke="white" fill="#1b468d" x="1" y="1" width="22" ' +
  'height="22" /><text x="12" y="18" font-size="12pt" ' +
  'font-family="Arial" font-weight="bold" text-anchor="middle" ' +
  'fill="white">H</text></svg>';

<HPlatform
  app_id='YOUR_APP_ID'
  app_code='YOUR_APP_CODE'
  apikey={'YOUR_API_KEY_FOR_V3.1'}
  useCIT
  useHTTPS
  includeUI
  interactive // Required for events
  includePlaces
>
  <HMap
    style={{
      height: '400px',
      width: '800px'
    }}
    useEvents // Required for events
    mapEvents={{ pointerdown: (e) => console.log('Map Pointer Down', e) }} // event handlers
    mapOptions={{
      center: { lat: 51, lng: 7 },
      zoom: 5,
      pixelRatio: window.devicePixelRatio || 1
    }}
  >
    <HMapCircle
      coords={circleCoords}
      radius={198000}
      options={circleOptions}
      objectEvents={{
        pointerdown: (e) => console.log('Circle Pointer Down', e)
      }}
    />
    <HMapRectangle
      points={rectanglePoints}
      options={rectangleOptions}
      objectEvents={{
        pointerdown: (e) => console.log('Rectangle Pointer Down', e)
      }}
    />
    <HMapPolyline
      points={polyLinePoints}
      objectEvents={{
        pointerdown: (e) => console.log('Polyline Pointer Down', e)
      }}
    />
    <HMapPolygon
      points={polygonPoints}
      options={polygonOptions}
      objectEvents={{
        pointerdown: (e) => console.log('Polygon Pointer Down', e)
      }}
    />
    <HMapMarker
      coords={markerCoords}
      icon={markerIcon}
      objectEvents={{
        pointerdown: (e) => console.log('Marker Pointer Down', e)
      }}
    />
  </HMap>
</HPlatform>;

HMapGeoCode

Props
  • geoCodeParams: PropTypes.object - Depends on the type being used. Default params to be used when reverse and landmark are falsy, reverse params to be used when reverse is set to true, landmark params to be used when landmark is set to true
  • children: PropTypes.element.isRequired - React Element that receives map, platform, lat, lng as props
  • reverse: PropTypes.bool - Should implement reverse geo coding
  • landmark: PropTypes.bool - Should implement landmark geo coding
Usage
Address to positions

Converts an address to a position on the map

import { HPlatform, HMap, HMapGeoCode, HMapMarker } from 'react-here-map';

const geoCodeParams = {
  searchText: '200 S Mathilda Ave, Sunnyvale, CA'
};

const icon =
  '<svg width="24" height="24" ' +
  'xmlns="http://www.w3.org/2000/svg">' +
  '<rect stroke="white" fill="#1b468d" x="1" y="1" width="22" ' +
  'height="22" /><text x="12" y="18" font-size="12pt" ' +
  'font-family="Arial" font-weight="bold" text-anchor="middle" ' +
  'fill="white">H</text></svg>';

// Can render any map element, make sure to pass map and platform as props to the children to avoid unwarranted behavior
const GeoMarker = ({ map, platform, ui, lat, lng, key }) => (
  <HMapMarker
    coords={{ lat, lng }}
    map={map}
    platform={platform}
    key={key}
    icon={icon}
  />
);
// Child of HMapGeoCode receives same params as above.
<HPlatform
  app_id='YOUR_APP_ID'
  app_code='YOUR_APP_CODE'
  apikey={'YOUR_API_KEY_FOR_V3.1'}
  useCIT
  useHTTPS
  includeUI
  includePlaces
>
  <HMap
    style={{
      height: '400px',
      width: '800px'
    }}
    mapOptions={{ center: { lat: 52.5321472, lng: 13.3935785 } }}
  >
    <HMapGeoCode geoCodeParams={geoCodeParams}>
      <GeoMarker />
    </HMapGeoCode>
  </HMap>
</HPlatform>;
Position to address(es)

Converts a position to address(es) on the map

import { HPlatform, HMap, HMapGeoCode } from 'react-here-map';
// Create the parameters for the reverse geocoding request:
const reverseGeoCodingParameters = {
  prox: '52.5309,13.3847,150',
  mode: 'retrieveAddresses',
  maxresults: 1
};
// Can render any map element, make sure to pass map and platform as props to the children to avoid unwarranted behavior
const ReverseGeoMarker = ({ map, platform, ui, lat, lng, location, key }) => {
  ui.addBubble(
    new H.ui.InfoBubble(
      { lat, lng },
      { content: location.Location.Address.Label }
    )
  );
  return null;
};

// Child of HMapGeoCode receives same params as above.
<HPlatform
  app_id='YOUR_APP_ID'
  app_code='YOUR_APP_CODE'
  apikey={'YOUR_API_KEY_FOR_V3.1'}
  useCIT
  useHTTPS
  includeUI
  includePlaces
>
  <HMap
    style={{
      height: '400px',
      width: '800px'
    }}
    mapOptions={{ center: { lat: 52.5321472, lng: 13.3935785 } }}
  >
    <HMapGeoCode geoCodeParams={reverseGeoCodingParameters} reverse>
      <ReverseGeoMarker />
    </HMapGeoCode>
  </HMap>
</HPlatform>;
Landmark Point

Locate landmark positions on the map

import { HPlatform, HMap, HMapGeoCode } from 'react-here-map';

const LandmarkGeoMarker = ({
  map,
  platform,
  ui,
  lat,
  lng,
  location,
  key,
  _location
}) => {
  ui.addBubble(new H.ui.InfoBubble({ lat, lng }, { content: _location.Name }));
  return null;
};
// Create the parameters for the landmark search request:
const landmarkSearchParameters = {
  searchText: 'TXL'
};

// Child of HMapGeoCode receives same params as above.
<HPlatform
  app_id='YOUR_APP_ID'
  app_code='YOUR_APP_CODE'
  apikey={'YOUR_API_KEY_FOR_V3.1'}
  useCIT
  useHTTPS
  includeUI
  includePlaces
>
  <HMap
    style={{
      height: '400px',
      width: '800px'
    }}
    mapOptions={{ center: { lat: 52.5321472, lng: 13.3935785 } }}
  >
    <HMapGeoCode geoCodeParams={landmarkSearchParameters} landmark>
      <LandmarkGeoMarker />
    </HMapGeoCode>
  </HMap>
</HPlatform>;

HMapRoute

This uses React Hooks. Ensure that your react installation supports Hooks API

Displaying route on the Map Using normal line

Shows path to between two points based on params

Props
  • routeParams: PropTypes.object - Officially documented route params
  • lineOptions: PropTypes.object - Officially supported poly line options
  • icon: PropTypes.any - Icon to be used for the marker
  • markerOptions: PropTypes.object - Officially supported marker Options
  • children: PropTypes.element - React element that receives map, platform, ui, route, key, routeShape as props
  • renderDefaultLine: PropTypes.bool - Should use default renderer instead of a custom renderer as children
  • isoLine: PropTypes.bool - Use IsoLine instead of a Polyline
Usages
Using the default renderer
import React from 'react';
import { HPlatform, HMap, HMapRoute } from 'react-here-map';
import config from '../../config';

function Map() {
  const style = { height: '100%', width: '100%' };
  const mapOptions = { center: { lat: 52.092876, lng: 5.10448 }, zoom: 7 };

  const waypoints = [
    { lat: 52, lng: 5 },
    { lat: 53, lng: 6 }
  ];

  return (
    <HPlatform
      app_id={config.HERE_APP_ID}
      app_code={config.HERE_APP_CODE}
      apikey={config.HERE_API_KEY}
      interactive
      useHTTPS
      includeUI
    >
      <HMap style={style} mapOptions={mapOptions}>
        <HMapRoute
          routeParams={{
            waypoints,
            mode: 'fastest;car;traffic:disabled',
            representation: 'display'
          }}
        ></HMapRoute>
      </HMap>
    </HPlatform>
  );
}

export default Map;
Using a custom renderer
import React from 'react';
import { HPlatform, HMap, HMapRoute } from 'react-here-map';
import config from '../../config';

function Map() {
  const style = { height: '100%', width: '100%' };
  const mapOptions = { center: { lat: 52.092876, lng: 5.10448 }, zoom: 7 };

  const waypoints = [
    { lat: 52, lng: 5 },
    { lat: 53, lng: 6 }
  ];

  function Route({map, platform, ui, route, key, routeShape}: any) {
    return (
      <React.Fragment>
        <HMapPolyline points={routeShape}>
      </React.Fragment>
    )
  }

  return (
    <HPlatform
      app_id={config.HERE_APP_ID}
      app_code={config.HERE_APP_CODE}
      apikey={config.HERE_API_KEY}
      interactive
      useHTTPS
      includeUI
    >
      <HMap style={style} mapOptions={mapOptions}>
        <HMapRoute
          routeParams={{
            waypoints,
            mode: 'fastest;car;traffic:disabled',
            representation: 'display'
          }}
          renderDefaultLine={false}
        >
          <Route />
        </HMapRoute>
      </HMap>
    </HPlatform>
  );
}

export default Map;

Displaying route on the Map using iso line

Using the default renderer
import { HPlatform, HMap, HMapPolygon, HMapRoute } from 'react-here-map';
// Create the parameters for the reverse geocoding request:
const isoRoutingParams = {
  mode: 'fastest;car;',
  start: 'geo!52.5,13.4',
  range: '900',
  rangetype: 'time'
};

const routeLineOptions = {
  style: { strokeColor: 'blue', lineWidth: 10 },
  arrows: { fillColor: 'white', frequency: 2, width: 0.8, length: 0.7 }
};
const icon =
  '<svg width="24" height="24" ' +
  'xmlns="http://www.w3.org/2000/svg">' +
  '<rect stroke="white" fill="#1b468d" x="1" y="1" width="22" ' +
  'height="22" /><text x="12" y="18" font-size="12pt" ' +
  'font-family="Arial" font-weight="bold" text-anchor="middle" ' +
  'fill="white">H</text></svg>';

const RouteMarkerIso = ({ map, platform, ui, route, routeShape, center }) => {
  return (
    <React.Fragment>
      <Polygon
        points={routeShape}
        options={polygonOptions}
        setViewBounds
        map={map}
        platform={platform}
      />
      <Marker
        coords={center}
        map={map}
        platform={platform}
        icon={icon}
        options={markerOptions}
        setViewBounds={false}
      />
    </React.Fragment>
  );
};

<HPlatform
  app_id='YOUR_APP_ID'
  app_code='YOUR_APP_CODE'
  apikey={'YOUR_API_KEY_FOR_V3.1'}
  useCIT
  useHTTPS
  includeUI
  includePlaces
>
  <HMap
    style={{
      height: '400px',
      width: '800px'
    }}
    mapOptions={{ center: { lat: 52.5321472, lng: 13.3935785 } }}
    interactive
    includeUI
  >
    <HMapRoute
      routeParams={isoRoutingParams}
      icon={icon}
      isoLine
      defaultDisplay
      lineOptions={routeLineOptions}
    />
  </HMap>
</HPlatform>;
Using a custom renderer
import { HPlatform, HMap, HMapPolygon, HMapRoute } from 'react-here-map';
// Create the parameters for the reverse geocoding request:
const isoRoutingParams = {
  mode: 'fastest;car;',
  start: 'geo!52.5,13.4',
  range: '900',
  rangetype: 'time'
};

const routeLineOptions = {
  style: { strokeColor: 'blue', lineWidth: 10 },
  arrows: { fillColor: 'white', frequency: 2, width: 0.8, length: 0.7 }
};
const icon =
  '<svg width="24" height="24" ' +
  'xmlns="http://www.w3.org/2000/svg">' +
  '<rect stroke="white" fill="#1b468d" x="1" y="1" width="22" ' +
  'height="22" /><text x="12" y="18" font-size="12pt" ' +
  'font-family="Arial" font-weight="bold" text-anchor="middle" ' +
  'fill="white">H</text></svg>';
const RouteMarkerIso = ({
  map,
  platform,
  ui,
  route,
  routeShape,
  center,
  component
}) => {
  return (
    <React.Fragment>
      <Polygon
        points={routeShape}
        options={polygonOptions}
        setViewBounds
        map={map}
        platform={platform}
      />
      <Marker
        coords={center}
        map={map}
        platform={platform}
        icon={icon}
        options={markerOptions}
        setViewBounds={false}
      />
    </React.Fragment>
  );
};

<HPlatform
  app_id='YOUR_APP_ID'
  app_code='YOUR_APP_CODE'
  apikey={'YOUR_API_KEY_FOR_V3.1'}
  useCIT
  useHTTPS
  includeUI
  includePlaces
>
  <HMap
    style={{
      height: '400px',
      width: '800px'
    }}
    mapOptions={{ center: { lat: 52.5321472, lng: 13.3935785 } }}
    interactive
    includeUI
  >
    <HMapRoute
      routeParams={isoRoutingParams}
      icon={icon}
      defaultDisplay={false}
      isoLine
      lineOptions={routeLineOptions}
    >
      <RouteMarkerIso />
    </HMapRoute>
  </HMap>
</HPlatform>;

HMapLayer

Adds a layer to the map.

Individual layer holds different information

props

mapLayerType: PropTypes.string.isRequired In a dot prop form e.g mapLayerType="incidents", mapLayerType="normal.traffic"

{
  normal: [
    "xbase",
    "xbasenight",
    "base",
    "basenight",
    "map",
    "mapnight",
    "traffic",
    "trafficnight",
    "transit",
    "panorama",
    "panoramanight",
    "labels",
    "metaInfo"
  ],
  satellite: ["xbase", "base", "map", "traffic", "panorama", "labels"],
  terrain: ["xbase", "base", "map", "traffic", "panorama", "labels"],
  incidents: true
}
Usage
import React from 'react';
import { HPlatform, HMap, HMapLayer } from 'react-here-map';

function Map() {
  const style = { height: '100%', width: '100%' };
  const mapOptions = { center: { lat: 52.092876, lng: 5.10448 }, zoom: 7 };

  const points = [
    { lat: 52, lng: 5 },
    { lat: 53, lng: 6 }
  ];

  return (
    <HPlatform
      app_id='YOUR_APP_ID'
      app_code='YOUR_APP_CODE'
      apikey='YOUR_API_KEY'
      interactive
      useHTTPS
      includeUI
    >
      <HMap style={style} mapOptions={mapOptions}>
        <HMapLayer></HMapLayer>
      </HMap>
    </HPlatform>
  );
}

export default Map;

HMapPlaces

Search for places on the map

Props

  • library: PropTypes.string.isRequired One of the places library supported by HERE maps for the requests

  • query: PropTypes.string Passing the query externally to initiate the request on load after getting the location of the user

  • category: PropTypes.string Result category

  • placeClassName: PropTypes.string Class for the container

  • inputClassName: PropTypes.string Class for the Input field

  • containerStyle: PropTypes.object Styles for the container

  • inputStyle: PropTypes.object Styles for the input

  • itemContainerClass: PropTypes.string Result Items container class

  • itemClass: PropTypes.string Result Items class

  • iconClass: PropTypes.string Icon marker class name

  • inputStyle: PropTypes.object Styles for the input

  • getItem: PropTypes.function Callback when an item is clicked in the result

  • markerOptions: PropTypes.object Options for the marker

  • markerIcon: PropTypes.element Icon for the marker

  • markerType: PropTypes.string Type of marker icon

  • multiMarker: PropTypes.boolean allow for many markers

Usage

import { HPlatform, HMap, HMapPlaces } from 'react-here-map';

<HPlatform
  app_id='YOUR_APP_ID'
  app_code='YOUR_APP_CODE'
  apikey={'YOUR_API_KEY_FOR_V3.1'}
  useCIT
  useHTTPS
  includePlaces
  interactive
>
  <HMapPlaces library='search' />
</HPlatform>;

🧑‍💻 / Authors


📅 / Changes

06/05/2020

  • Includes support for v3.1 API key

✔ / TODO

Want to know what we are working on or care to add some new features yourself?

Check the TODO


🔑 / Licence

This project has been created under the MIT License.

Check the LICENSE.


Feel like giving some support?

🚨 Report issues 🚨
⬅️ Make pull requests ➡️
⭐ Star this project ⭐



⬆️ Back to Top ⬆️

About

No description, website, or topics provided.

Resources

Readme

License

MIT license
Activity
Custom properties

Stars

1 star

Watchers

1 watching

Forks

1 fork
Report repository

Releases

No releases published

Packages

No packages published

Languages
